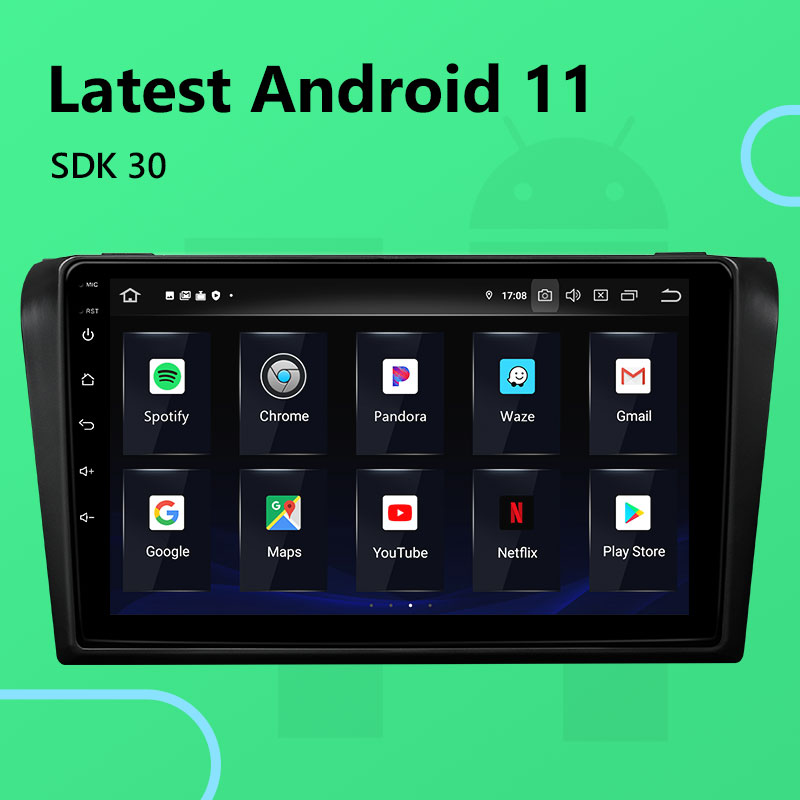

| System Information | Android 11 |
| RK3566 Quad-core Cortex-A55 up to 1.8GHz |
| 2GB RAM |
| 32GB ROM |
| Parameter | Operating voltage: DC12V |
| Maximum operating current: ≤ 10A |
| Gross weight: 2.3 kg |
| Net weight: 1.25 kg |
| Installation size: 178mm(Width) * 120mm(Depth) * 50mm(Height) |
| Panel size: 265mm(Upper Width) * 139mm(Height) * 234mm(Lower Width) |

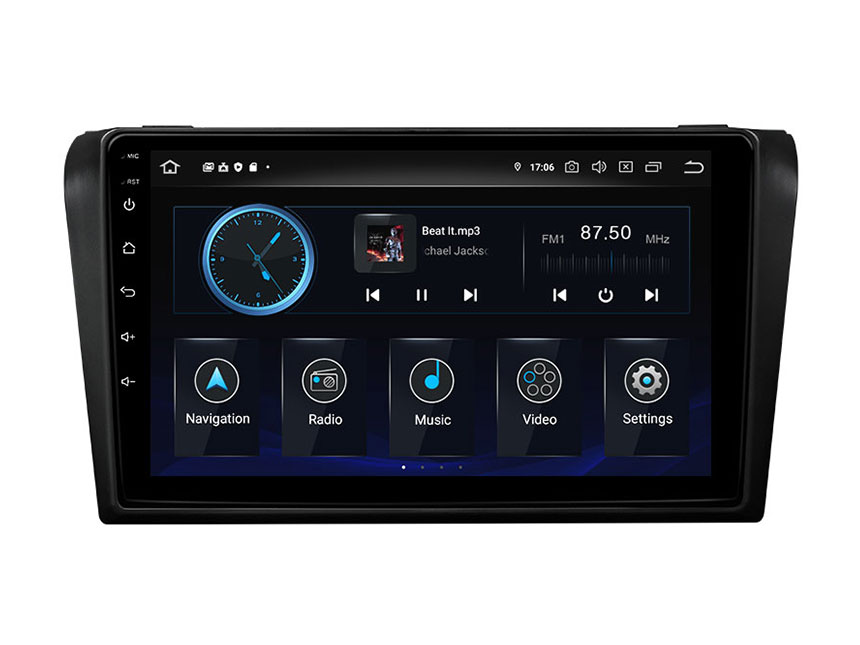

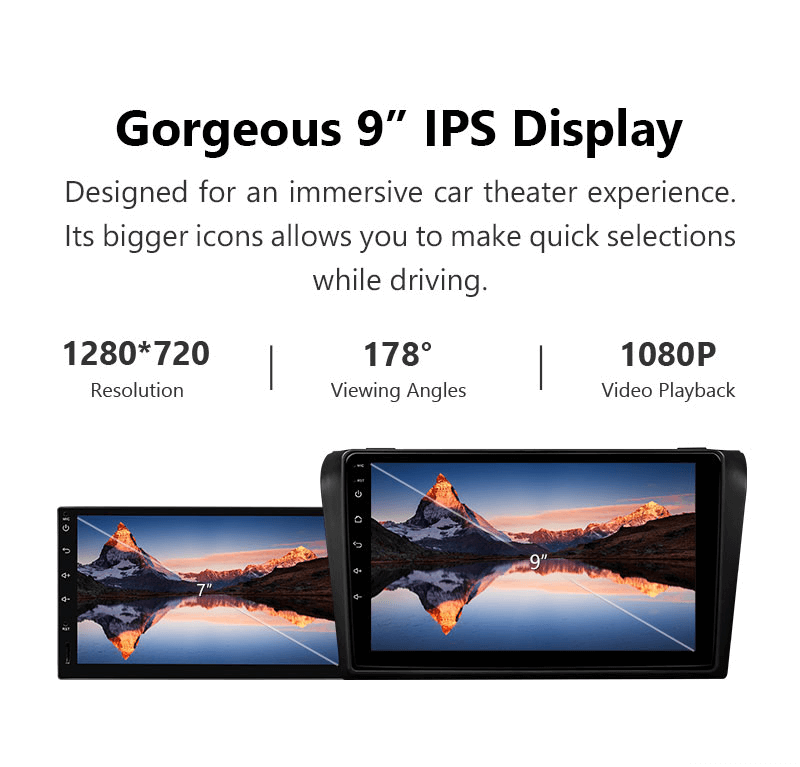

| Screen | 9 inch HD IPS full touchscreen |
| 1280*720 resolution |
| Touchscreen: Multi-Touch capacitive touchscreen |
| Radio | NXP TEF6686 radio module |
| 30 preset radio stations(12 AM, 18 FM) |
| Built-in RDS radio receiver |

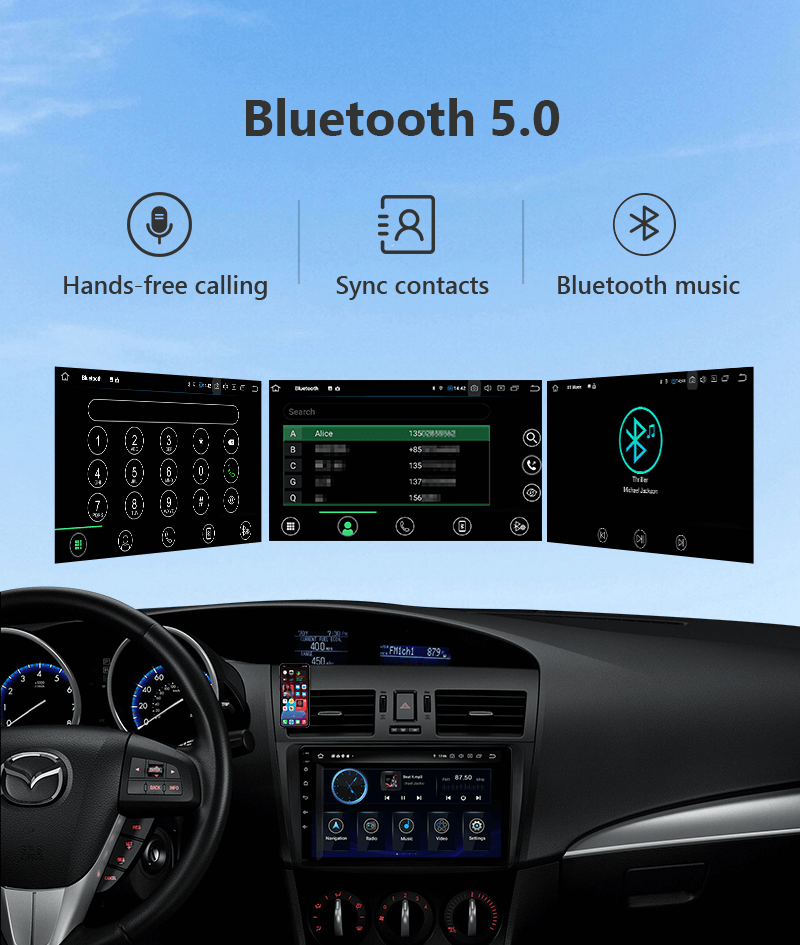

| Bluetooth | Version: Bluetooth 5.0 |
| Bluetooth hands-free calling and audio streaming |

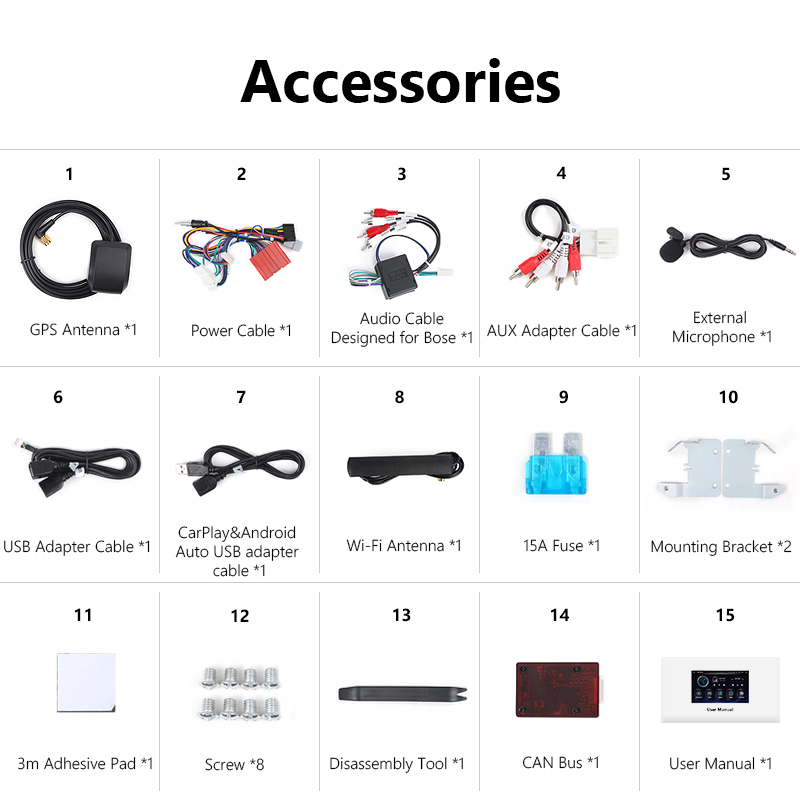

| Built-in microphone & external microphone (INCLUDED) |
| Support Bluetooth music player/phonebook |
| Support Eonon V0056 OBD2 diagnostic tool (NOT INCLUDED) |
| Bluetooth name: EONON |
| Bluetooth password: 5802 |

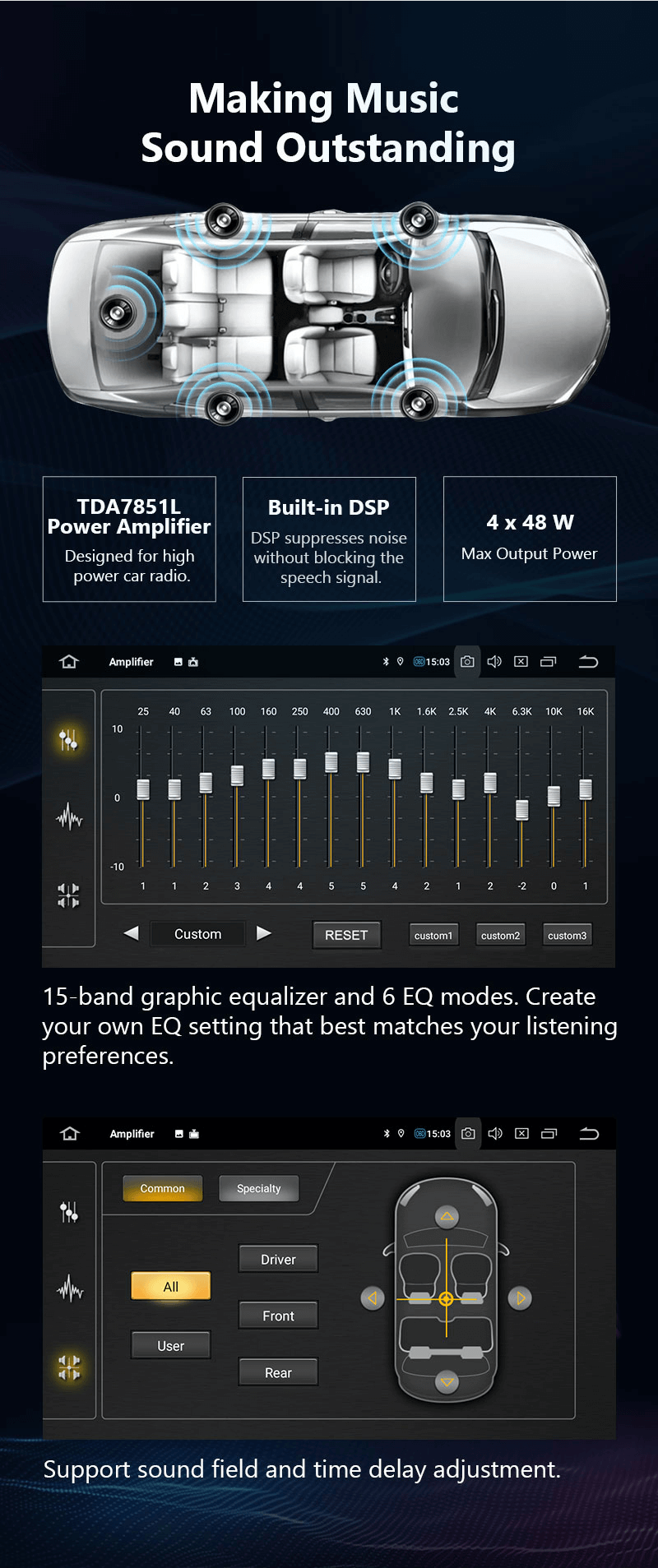

| Audio | Built-in DSP |
| 15-band graphic equalizer |
| 4x48W surround sound output |
| EQ modes: Custom Rock Pop Classic Jazz Flat Voice |
| Built-in Amplifier: 4-channel FR/FL/RR/RL audio output and two subwoofer audio outputs |
| USB | 3 USB slots |
| Support USB flash drive and MP3 player. |
| Video formats: Support AVI, MKV, MP4, WMV, RMVB, MPG...All Android video formats, Web video and 1080P video. |
| Audio formats: Support MP3, WMA, WAV, AC3, OGG, FLAC, Web audio etc. |
| Picture formats: Support JPEG, BMP, PNG,TIFF etc. |

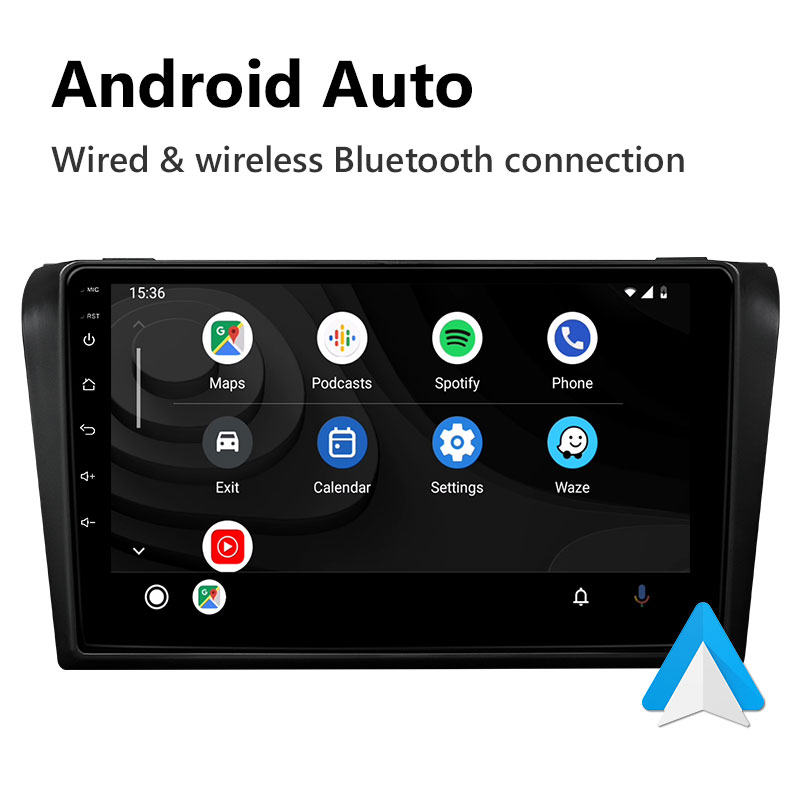

| Other Features | Wired & Wireless Android Auto (Note: 1. Please make sure that your phone supports Google services and Android Auto. 2. Some phones only support wired Android Auto.) |

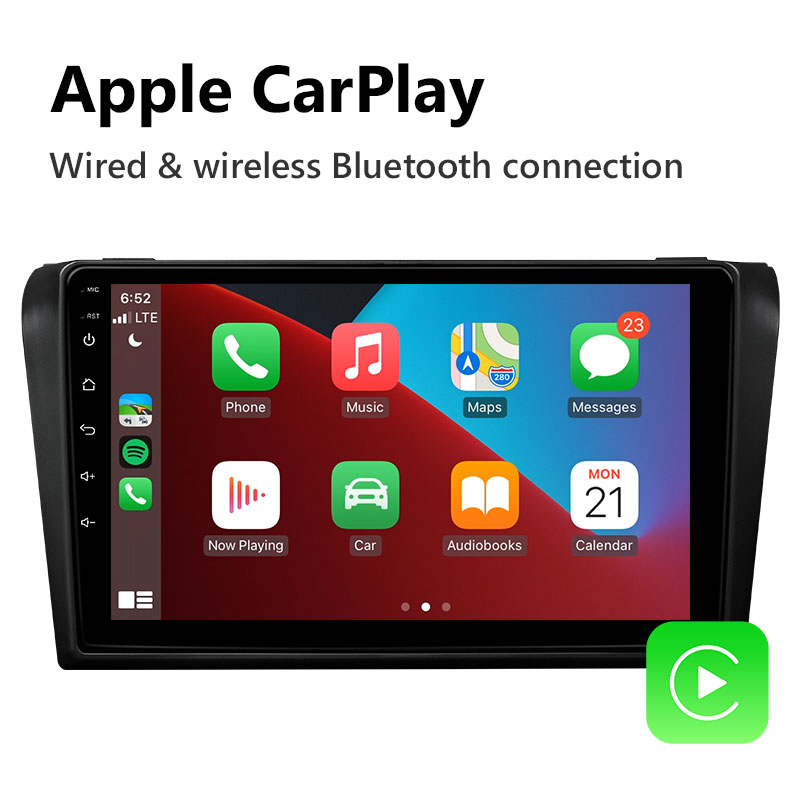

| Wired & Wireless Apple CarPlay |
| Support screen mirroring (EasyConnection app) |
| Support steering wheel controls |

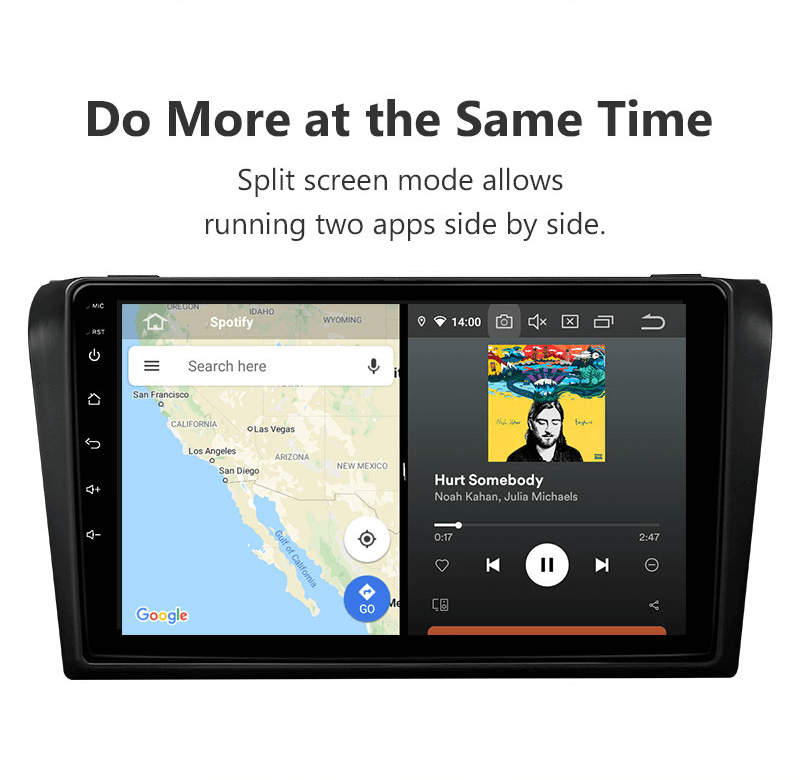

| Support split-screen multitasking |
| Support changing the color of button light |
| Support Wi-Fi(2.4G) |
| Support 4G dongle(NOT INCLUDED) |
| Support dashcam compatible with Android 11 |

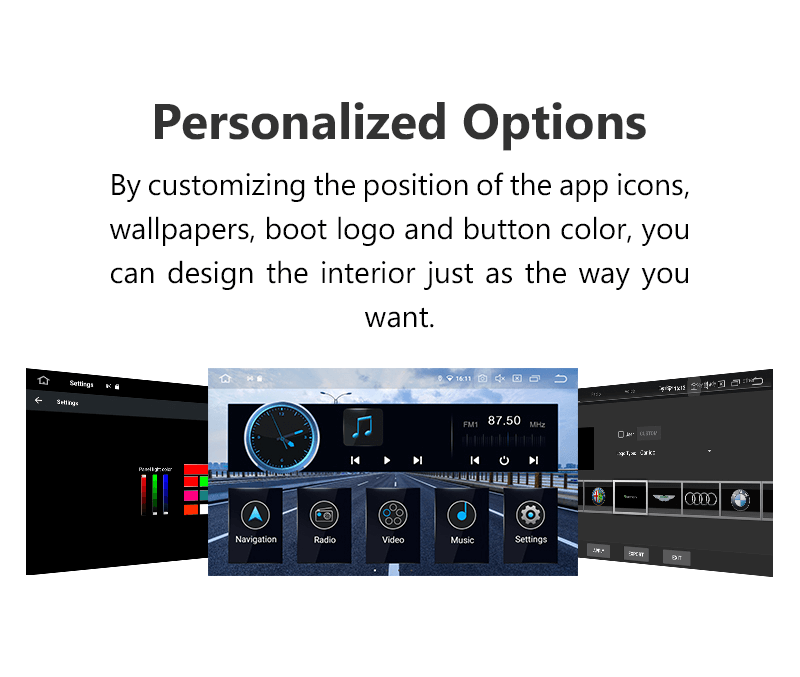

| Support customizing startup logo and screen background |
| Support app installation |
| Turn Off Display supported |
| Support time display |
| Support power-off memory |
