| General |

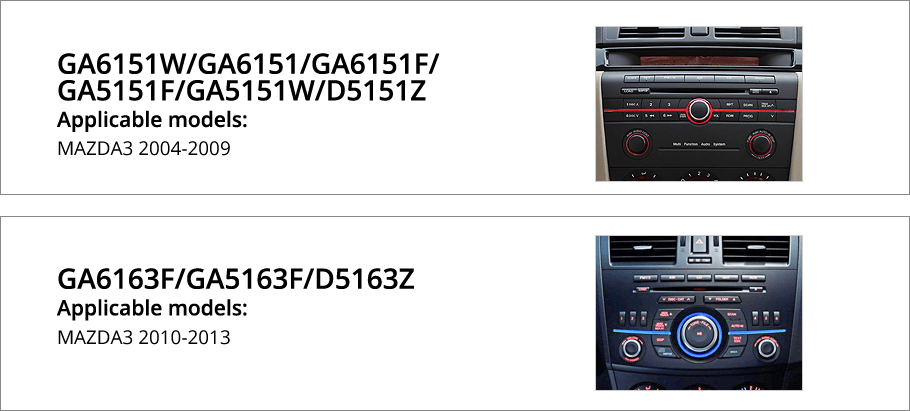

| Specific car models | Note:Before purchasing, please confirm the model year and the size and shape of the center console panel of your car. If your car is not among the range of compatible vehicles, please consult our customer service first. (For 2004-2005 Mazda 3, the factory LCD will not be compatible with GA6151W.) |
| Installation type | ISO 2 DIN Size |
| Installation Size | 178(Length)×142(Up Width)×100(Height)mm Down Width : 185mm |
| Panel Size | 265mm(Up Length) x 142mm(Height) x 235mm(Down Length) |
| Gross Weight | 3.4kg |
| Net Weight | 2.4kg |
| Power Supply | DC 12V |
| Max Working Current | 15A |
| Steering Wheel Control Function | Yes |
| Menu Language | 85 kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/Polish, etc. |
| Auto-memory Function | Yes |
| External MIC Support | Yes |

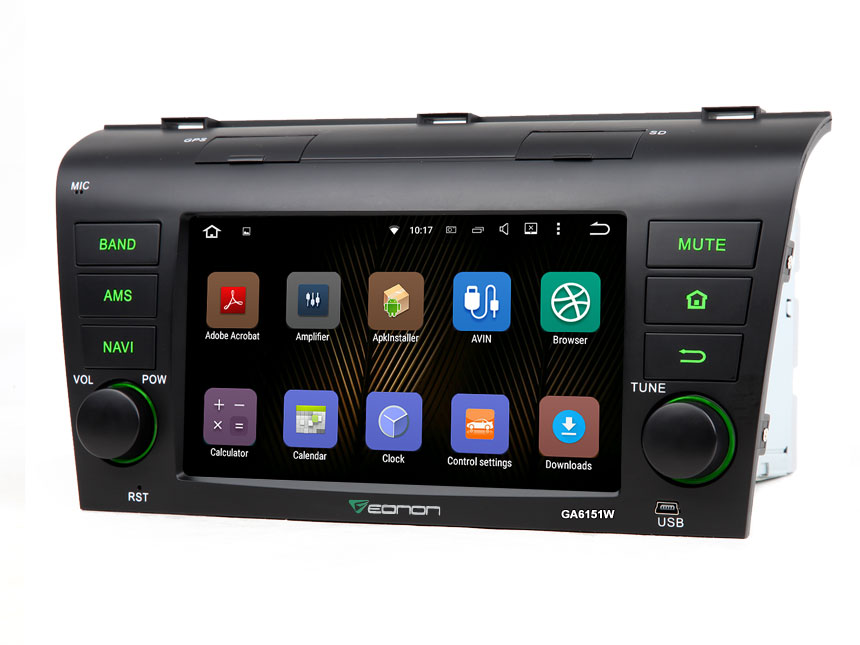

| Operation System | Android 5.1.1 |
| CPU Processor | RK3188 1.6GHz Cortex A9 Quad-Core |
| RAM | SAMSUNG DDR3, 1GB |
| Memory | 16 GB |

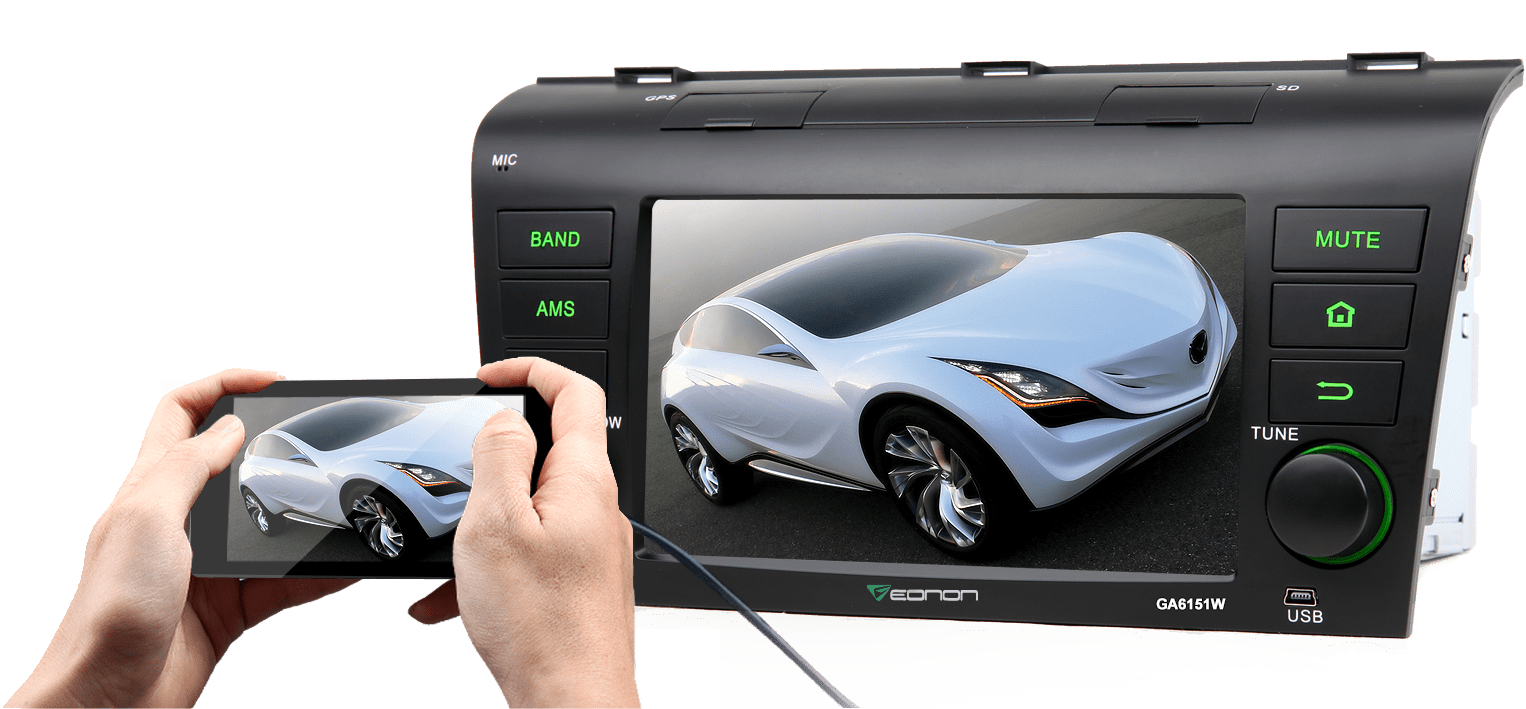

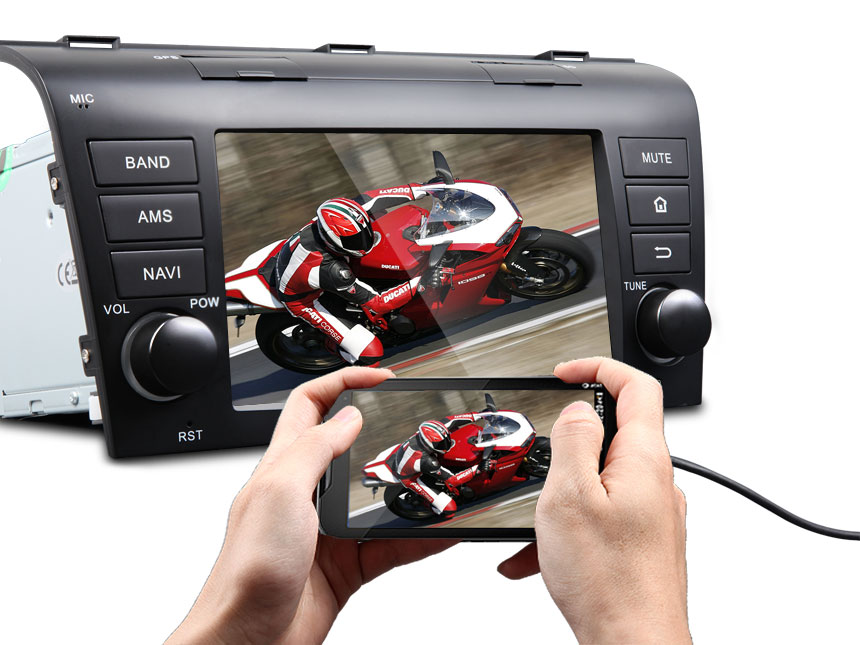

| Mutual Control Between HU & Phone | Yes (Supports Mutual Control Between Head Unit & Your Android Smart Phone. Supports Screen Mirroring features with iOS DEVICES, but does not support mutual control with them.) |
| Bose system compatibility | Yes |
| Screen |
| Type | 7 Inch HD Digital Capacitive Touch Screen |

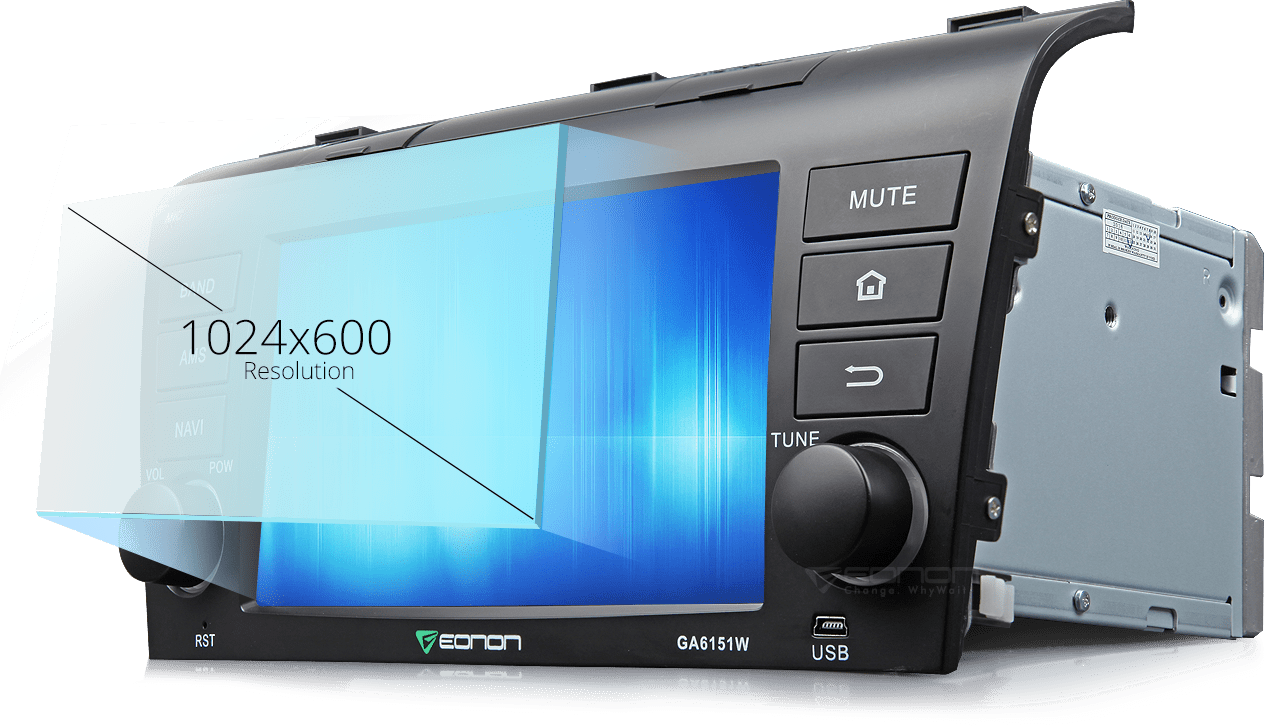

| Resolution | 1024*600WVGA |
| Touch Screen Function | Yes |
| Built-In LCD Clock Display Function | Yes |

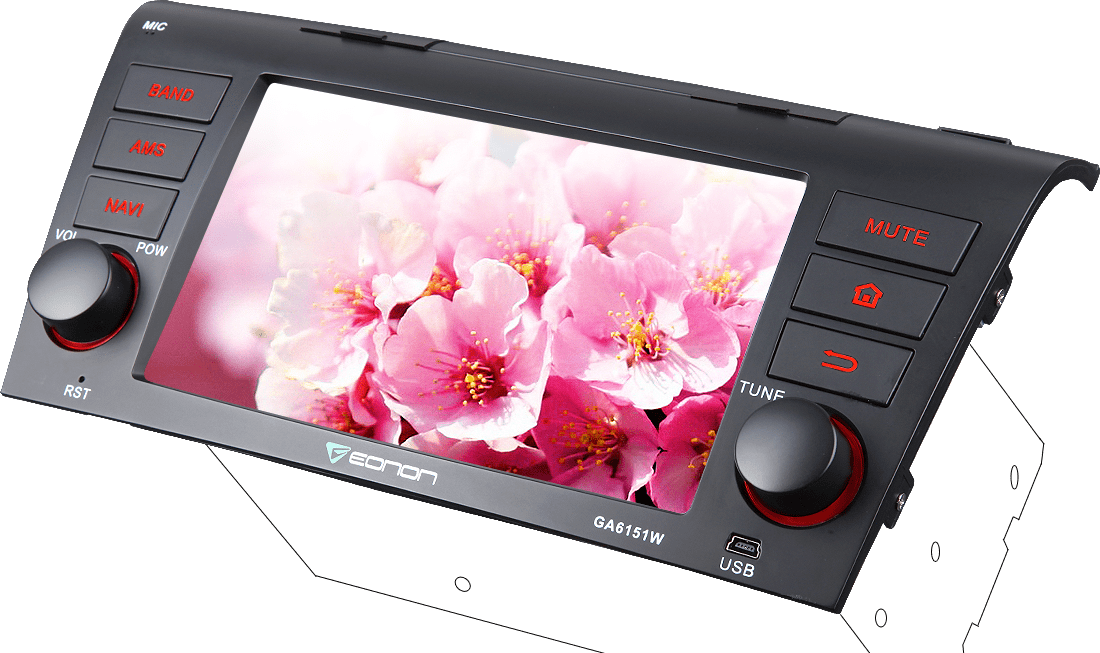

| Built-in LED Button Color Options | 7 kinds of LED Button Colo for your choice (Red, Green, Blue, Orange, Yellow, White, Multicolour) |
| Dynamic Background Pictures | 6 dynamic backgrounds available. Customers can also use their own pictures as background. |

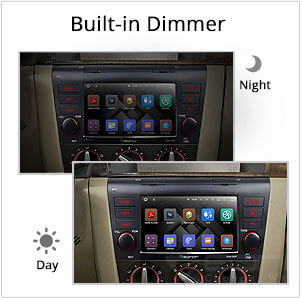

| Image Brightness Adjustable | Yes |

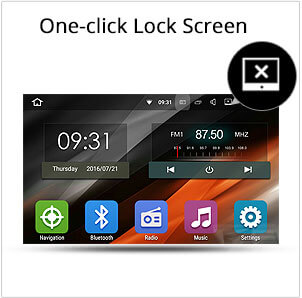

| Support One Key Screen Off | Yes |
| Bluetooth |
| Make and Receive Calls Hands Free | Yes (Compatible with devices with Bluetooth 4.0, including smartphones from Apple, Samsung, HTC, Sony, etc.) |
| Bluetooth MP3 Player Function | Yes (This function is only compatible with devices supporting Bluetooth Audio Output) |
| Built-in Microphone | Yes |
| Support Bluetooth Phonebook Function | Yes |
| Support Bluetooth Contact Search | Yes |
| Connect Code | 5802 (Name: EONON) |
| Support Bluetooth Contact Sharing | Yes |
| OBD-2 | Supports most Bluetooth OBD2 ELM327 (Not compatible with any OBD2 that requires a password) |
| TV & Radio |

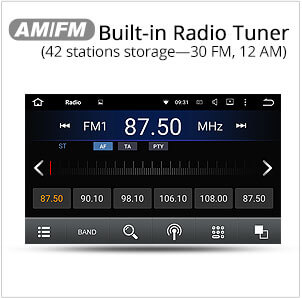

| Radio Stations | 42 Stations Memory |
| Built-In RDS Radio Receiver Function | Yes |
| Radio Frequency Region | China, Europe, Orit, Russia, America 1, America 2, Japan, Australia |
| Audio & Video |

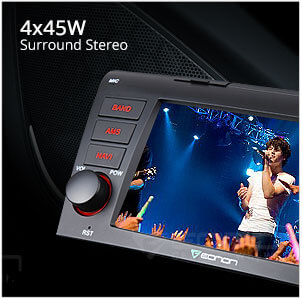

| Max power | 4x45W Surround Stereo |
| EQ (Effect Compensation) | FLAT VOICE CUSTOM ROCK POP JAZZ CLASSIC |
| Built-in Microphone in the control panel | Yes |

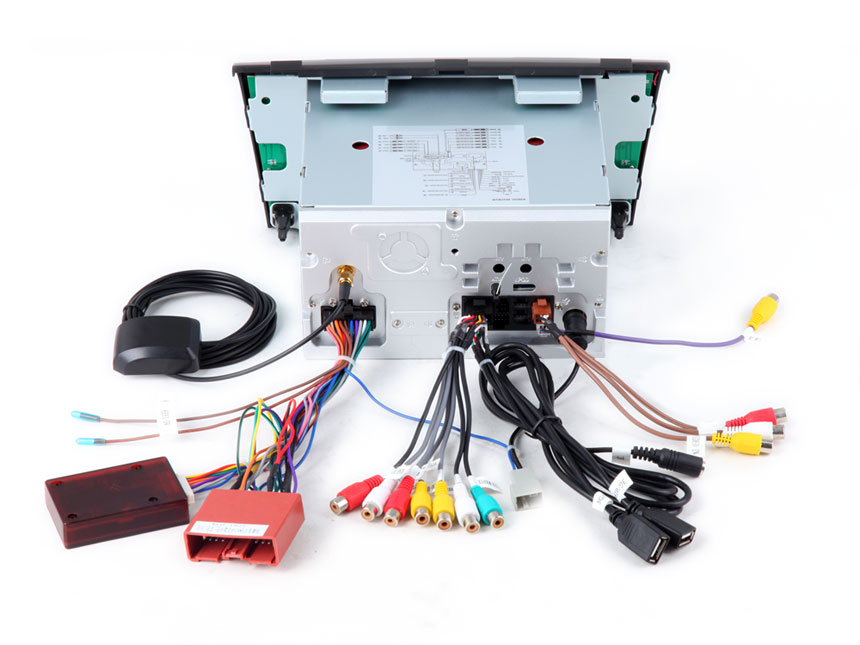

| Input & Output |
| RCA Audio/Video Output | Yes |
| AUX Audio/Video input | Yes |
| Back Sight Input to Camera | Yes |
| Built in Amplifier | Yes |

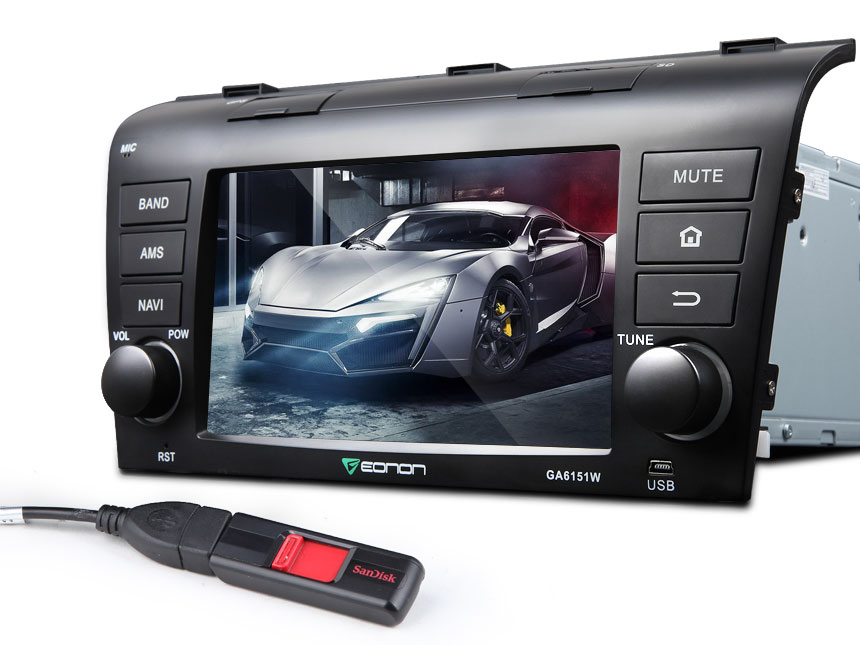

| USB/SD slot maximum compatibility | USB port/Micro SD card reader Supports USB flash drives and MP3 players with up to 32G of storage, but external hard drives are not supported. |
| Subwoofer Output | Yes |
| GPS Antenna Input | Yes |
| USB/SD Supported Video Formats | Supports MP4,AVI, WMV, RMVB,FLV,MKV,MOV,TS,3GP,MPG and other video foramts, and 1080P HD playback. |
| Audio Formats | Supports MP3,WMA,APE,FLAC, AAC etc, and network audio playing. |
| Picture Formats | Supports JPEG, BMP, PNG,GIF, and more. |
| 3G/WIFI Input | Yes |
| FR/FL/RR/RL Four Speakers Output | Yes |
| Built in amplifier FR/FL/RR/RL 4-Channel Audio Output | Yes |

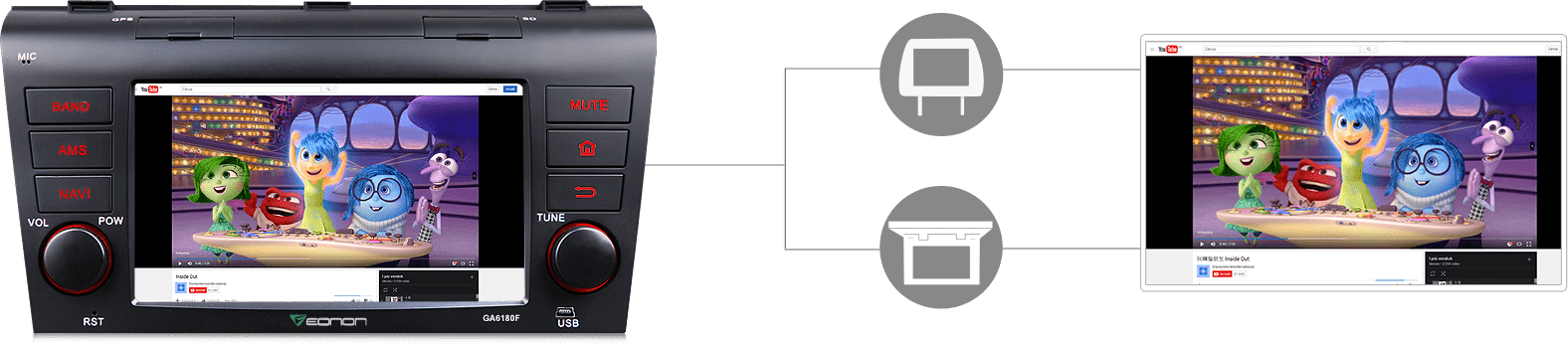

| Support Video Output from All Modes | Yes |
