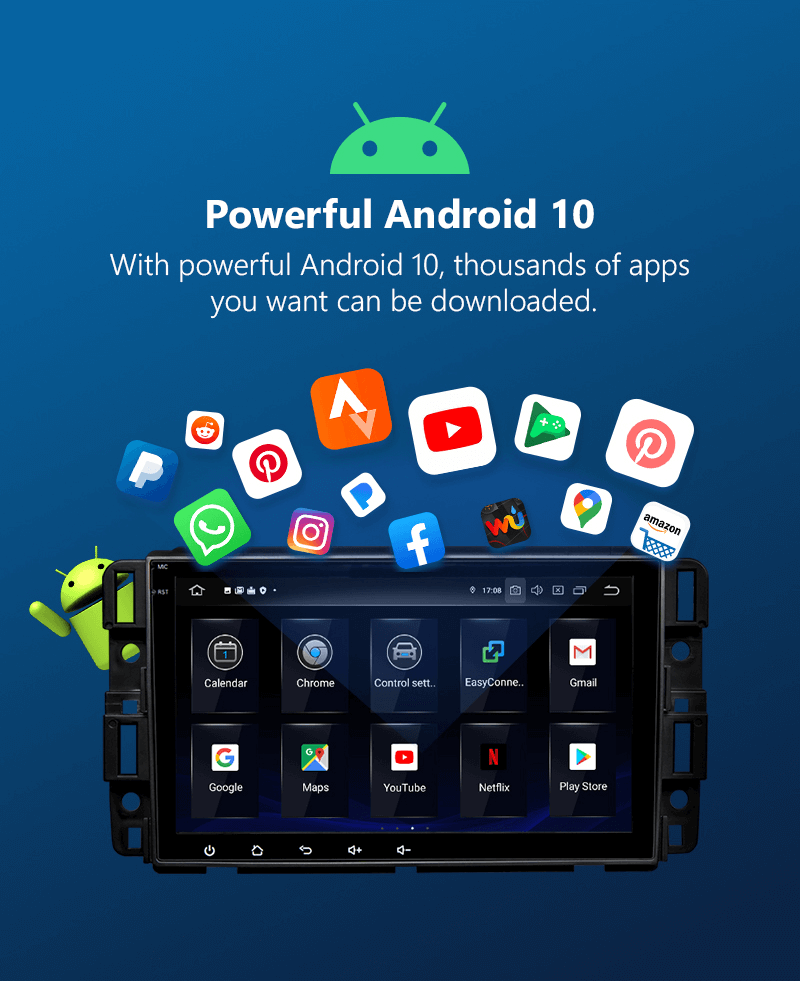

| System Information | Android 10 |
| Rockchip PX5 1.5GHz Cortex A53 Octa Core |
| 4GB RAM |
| 64GB ROM |
| Parameter | Operating voltage: DC12V |
| Maximum operating current: ≤ 10A |
| Gross weight: 2.3 kg |
| Net weight: 1.3 kg |
| Installation Size: 178mm(Width) * 120mm(Depth) * 100mm(Height) |
| Panel size: 201/197mm(Width) * 120mm(Height) |

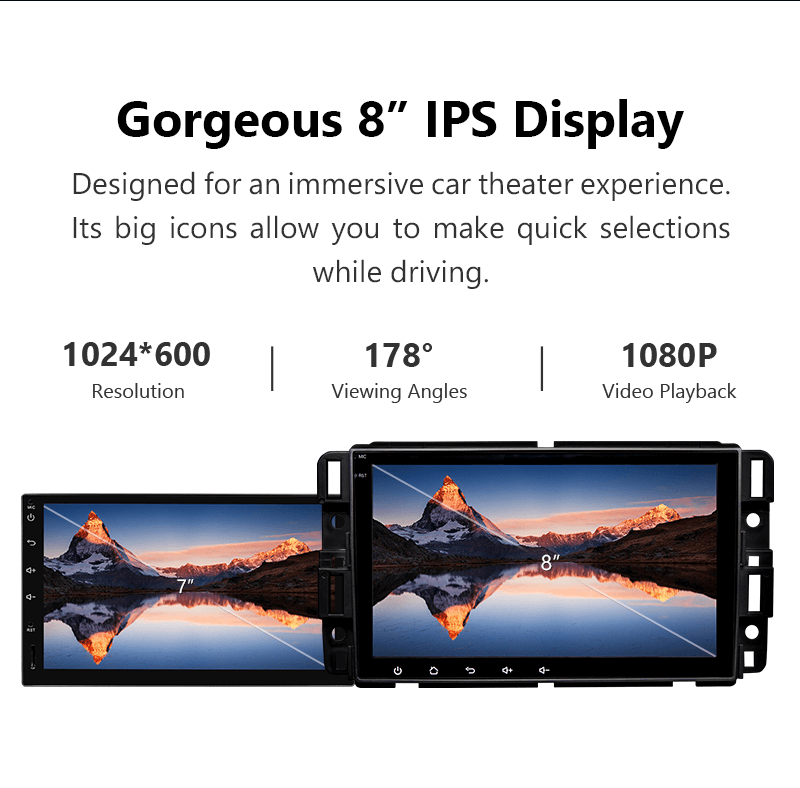

| Screen | 8 inch HD IPS full touchscreen |
| 1024*600 resolution |
| Built-in dimmer |
| Radio | 30 preset radio stations(12 AM, 18 FM) |
| Built-in RDS radio receiver |

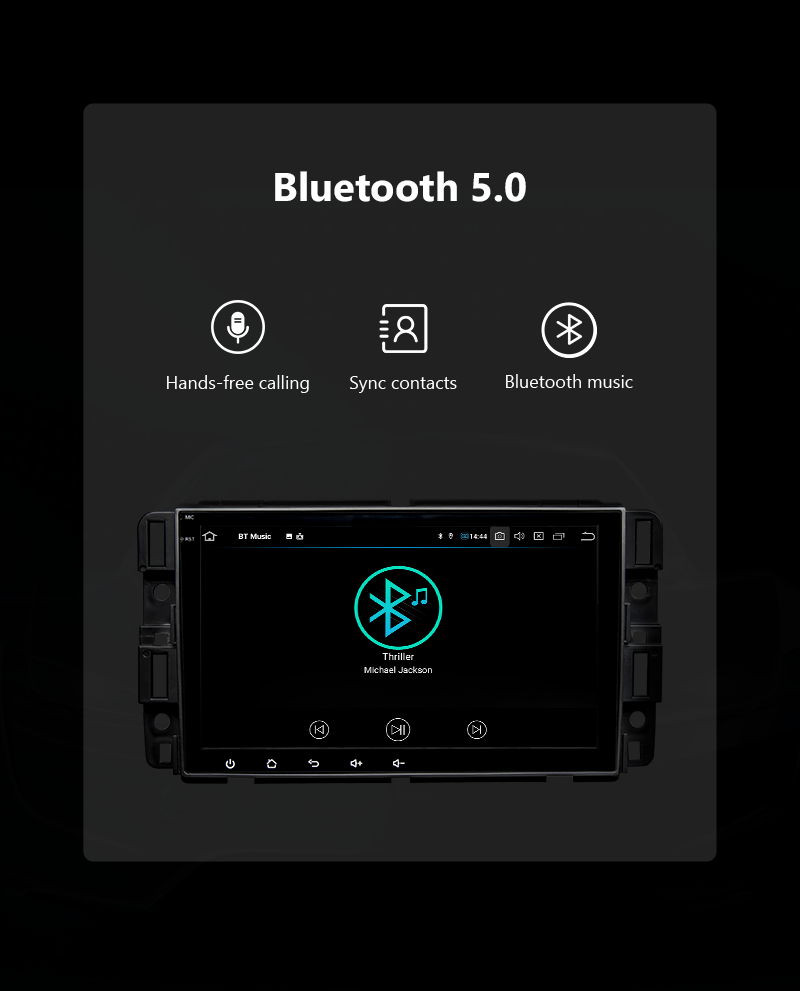

| Bluetooth | Blueooth 5.0 |
| Bluetooth hands-free calling and audio streaming |
| Built-in microphone & external microphone (INCLUDED) |
| Support Bluetooth music player/phonebook |
| Support Eonon V0056 OBD2 diagnostic tool (NOT INCLUDED) |
| Bluetooth name: EONON |
| Bluetooth password: 5802 |

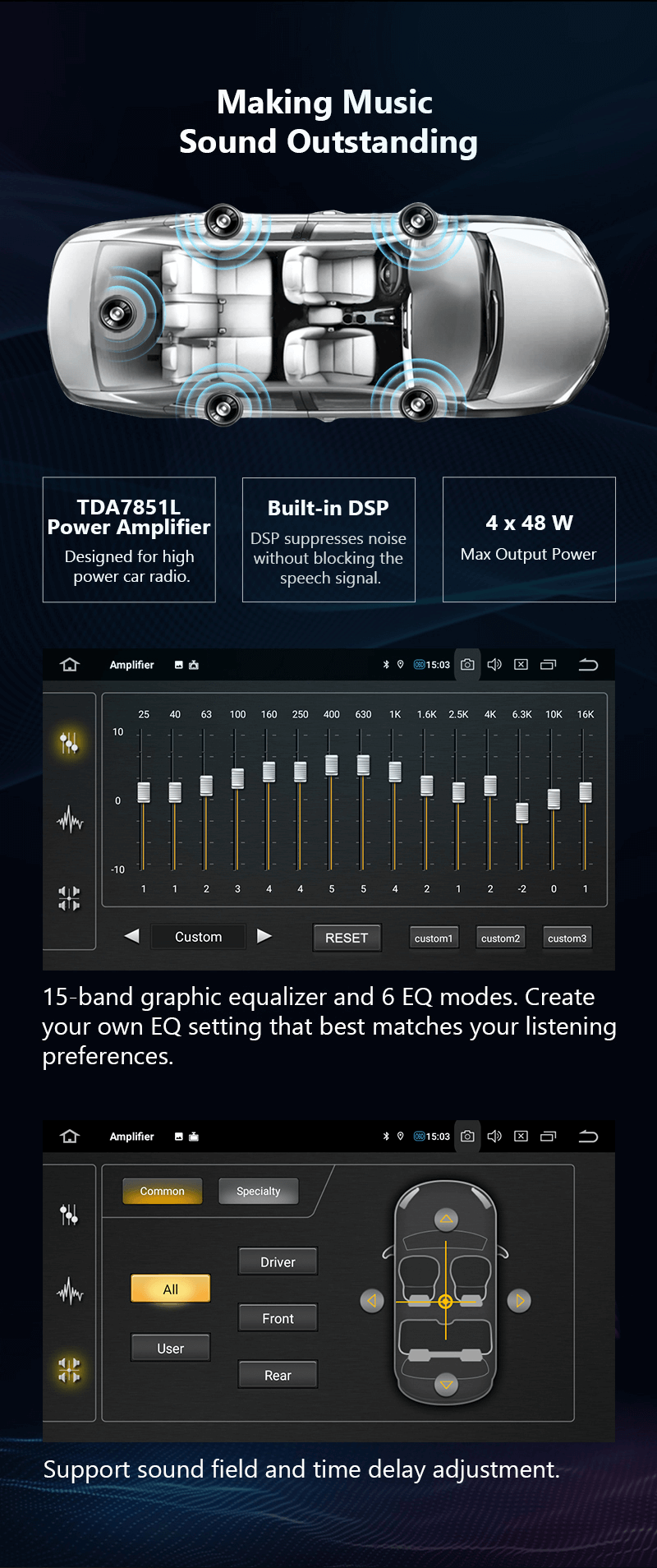

| Audio | Built-in DSP |
| 15-band graphic equalizer |
| 4x48W surround sound output |
| EQ modes: Custom Rock Pop Classic Jazz Flat Voice |
| Built-in Amplifier: 4-channel FR/FL/RR/RL audio output and two subwoofer audio outputs |
| USB | 3 USB ports |
| Support USB flash drive and MP3 player with up to 64GB of storage |
| Video formats: Support AVI, MKV, MP4, WMV, RMVB, MPG...All Android video formats, Web video and 1080P video. |
| Audio formats: Support MP3, WMA, WAV, AC3, OGG, FLAC, Web audio etc. |
| Picture formats: Support JPEG, BMP, PNG,TIFF etc. |

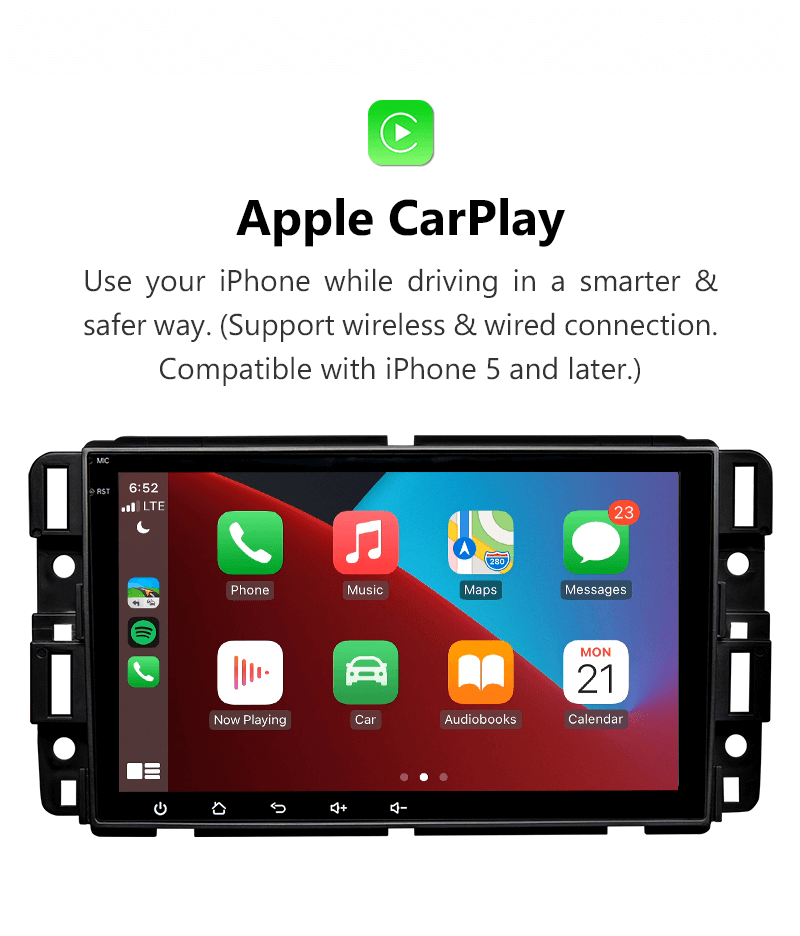

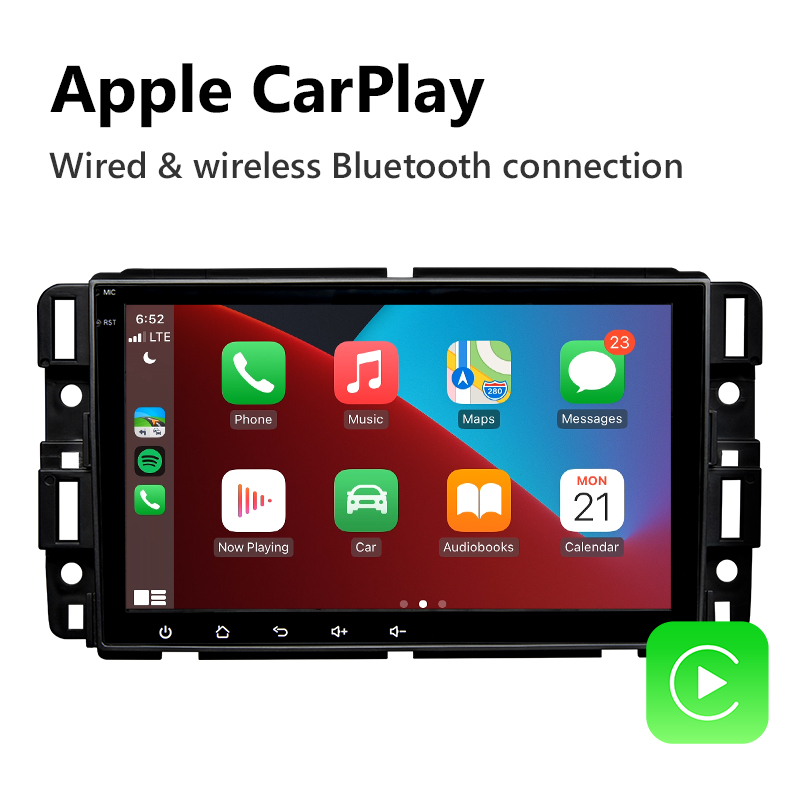

| Other Features | Built-in Apple Car Auto Play |

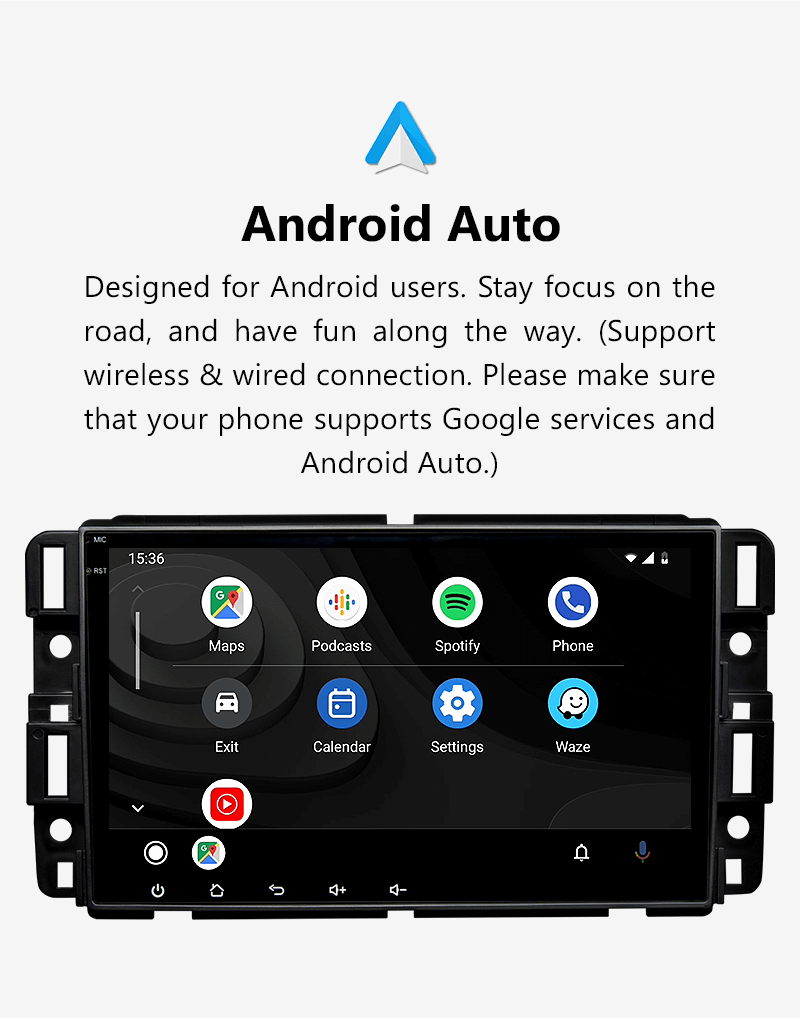

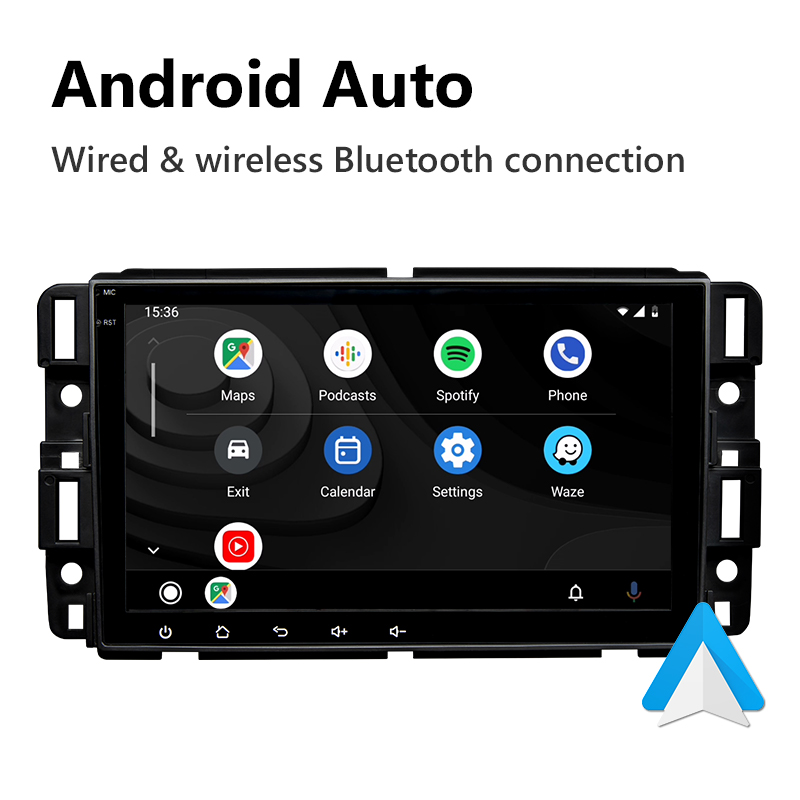

| Built-in Android Auto |
| Support screen mirroring (EasyConnection app) |

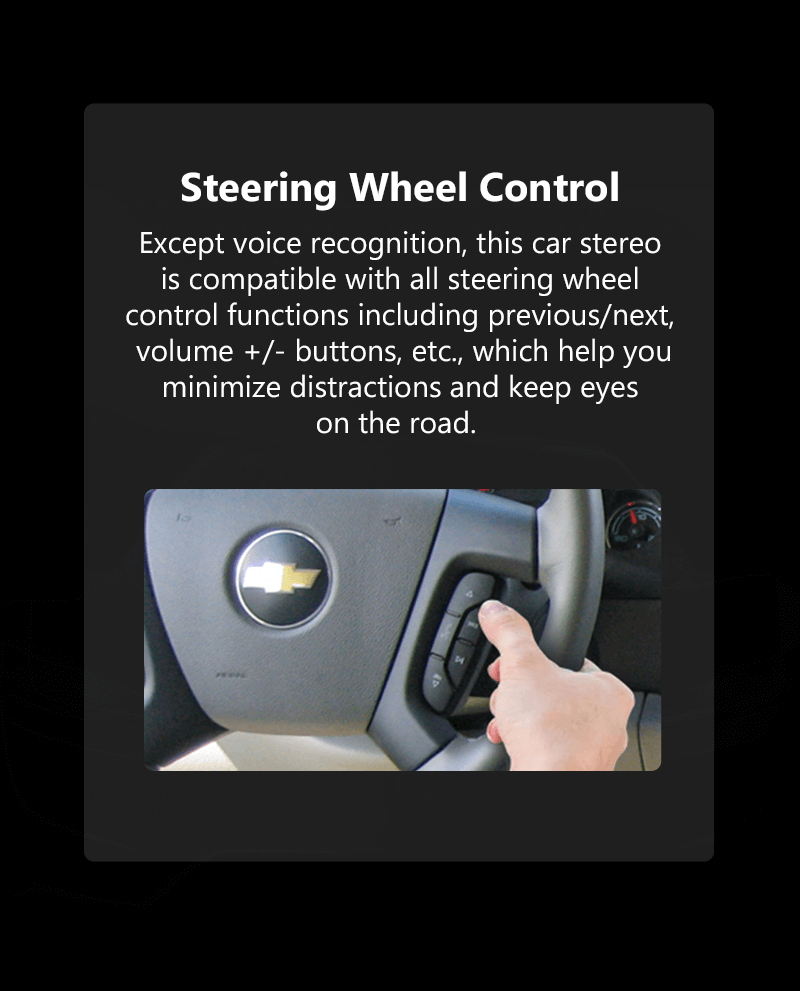

| Support steering wheel controls |

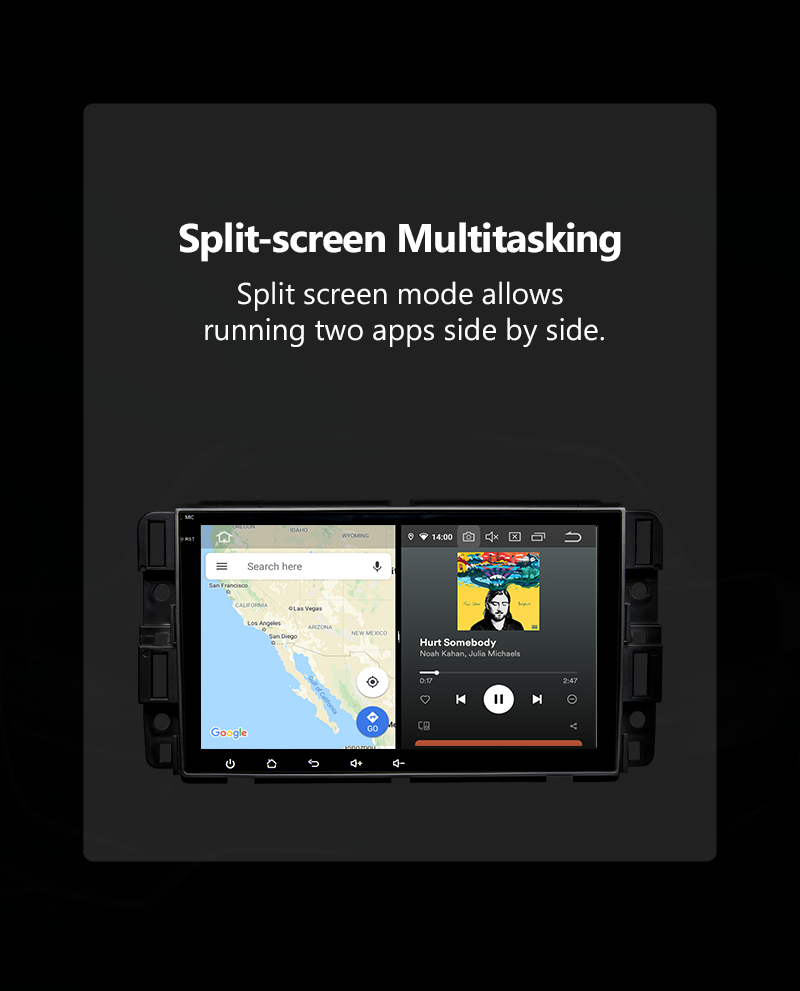

| Support split-screen multitasking |
| Color of button light: Red |
| Support Wi-Fi(2.4G), 4G dongle(NOT INCLUDED) |
| Support Eonon R0015 dashcam(NOT INCLUDED) |
| Support customizing startup logo and screen background |
| Support app installation |
| Turn Off Display supported |
| Support time display |
| Support power-off memory |
| Support video output from all modes |
